Specification
|
||
|
Camera
|
||
|
Image Sensor
|
1/3" Progressive Scan CMOS
|
|
|
Max. Resolution
|
3840*2160
|
|
|
Min. Illumination
|
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
|
|
|
Shutter Time
|
1/3 s to 1/100,000 s
|
|
|
Day & Night
|
IR cut filter
|
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
|
|
|
Lens
|
||
|
Lens Type
|
Fixed focal lens, 2.8 and 4 mm optional
|
|
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
|
|
Lens Mount
|
M12
|
|
|
Iris Type
|
Fixed
|
|
|
Aperture
|
F1.6
|
|
|
DORI
|
||
|
DORI
|
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m |
|
|
Illuminator
|
||
|
Supplement Light Type
|
IR, White Light
|
|
|
Supplement Light Range
|
IR: up to 30 m
White Light: up to 20 m |
|
|
Smart Supplement Light
|
Yes
|
|
|
IR Wavelength
|
850 nm
|
|
|
Video
|
||
|
Main Stream
|
50 Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
|
Sub-Stream
|
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
|
|
|
Video Compression
|
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG |
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
|
H.264 Type
|
Baseline Profile, Main Profile, High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
Bit Rate Control
|
CBR, VBR
|
|
|
Region of Interest (ROI)
|
1 fixed region for main stream
|
|
|
Audio
|
||
|
Audio Type
|
Mono sound
|
|
|
Environment Noise Filtering
|
Yes
|
|
|
Audio Sampling Rate
|
8 kHz/16 kHz
|
|
|
Audio Compression
|
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
|
|
|
Audio Bit Rate
|
64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|
|
Network
|
||
|
Security
|
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
API
|
Open Network Video Interface Profile S, Profile T, Profile G,ISAPI, SDK
|
|
|
Protocols
|
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
|
|
|
User/Host
|
Up to 32 users
3 user levels: administrator, operator, and user |
|
|
Client
|
iVMS-4200, Hik-Connect
|
|
|
Web Browser
|
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+ |
|
|
Interface
|
||
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
|
On-Board Storage
|
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256
GB |
|
|
Built-in Microphone
|
Yes
|
|
|
Reset Key
|
Yes
|
|
|
Event
|
||
|
Basic Event
|
Motion detection, video tampering alarm, exception
|
|
|
Linkage
|
Upload to FTP/memory card , send email, notify surveillance center, trigger
recording , trigger capture |
|
|
General
|
||
|

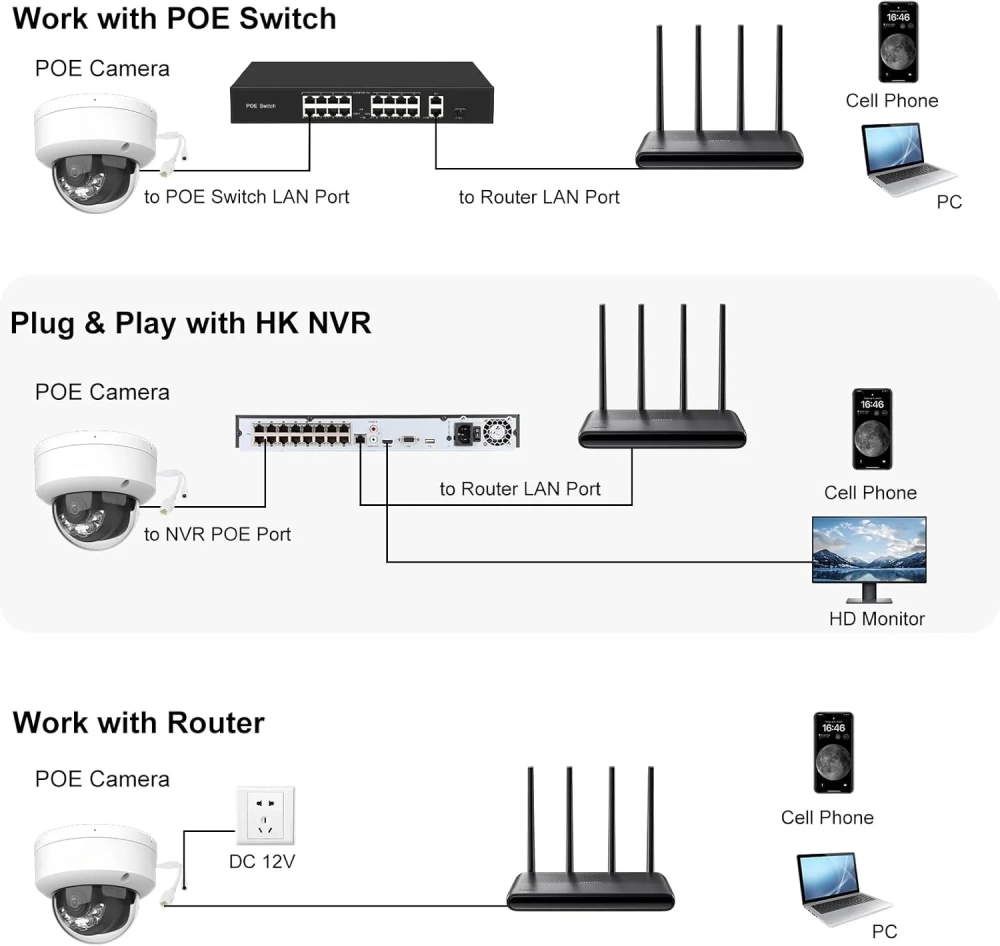

Power
|
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection

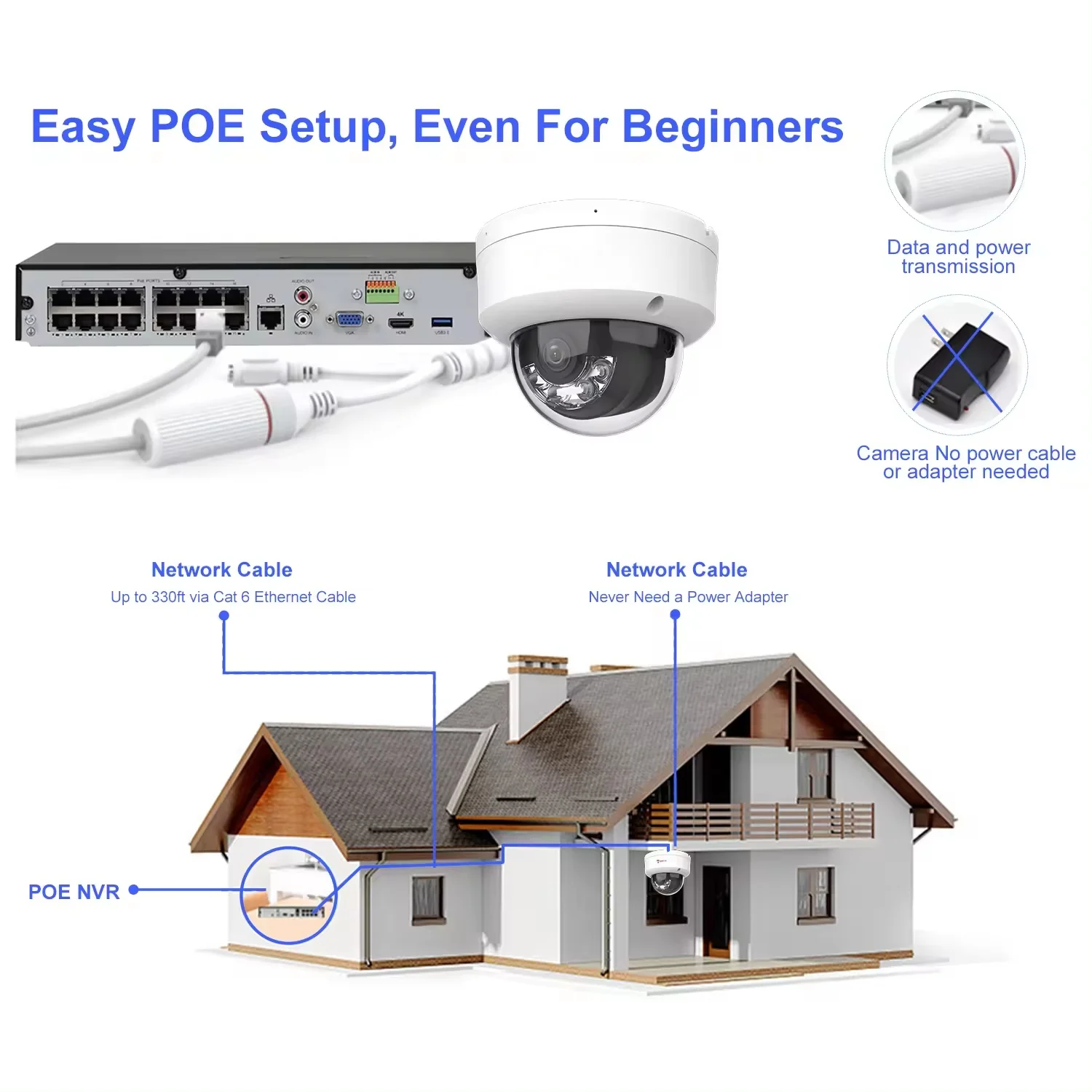

PoE: IEEE 802.3af, Class 3, max. 6.5 W |
|
|
Material
|
Metal & Plastic（ Full metal customization optional）
|
|
|
Dimension
|
Ø 110 mm × 89.2 mm (Ø 4.3" × 3.5")
|
|
|
Package Dimension
|
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
|
|
|
Weight
|
Approx. 340 g (0.7 lb.)
|
|
|
With Package Weight
|
Approx. 560 g (1.2 lb.)
|
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
Startup and Operating
Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
General Function
|
Heartbeat, anti-banding, mirror, password protection, password reset via email
|
|
|
Approval
|
||
|
EMC
|
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|
|
Safety
|
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
|
|
Environment
|
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
|
Protection
|
IP67: IEC 60529-2013
|
|
