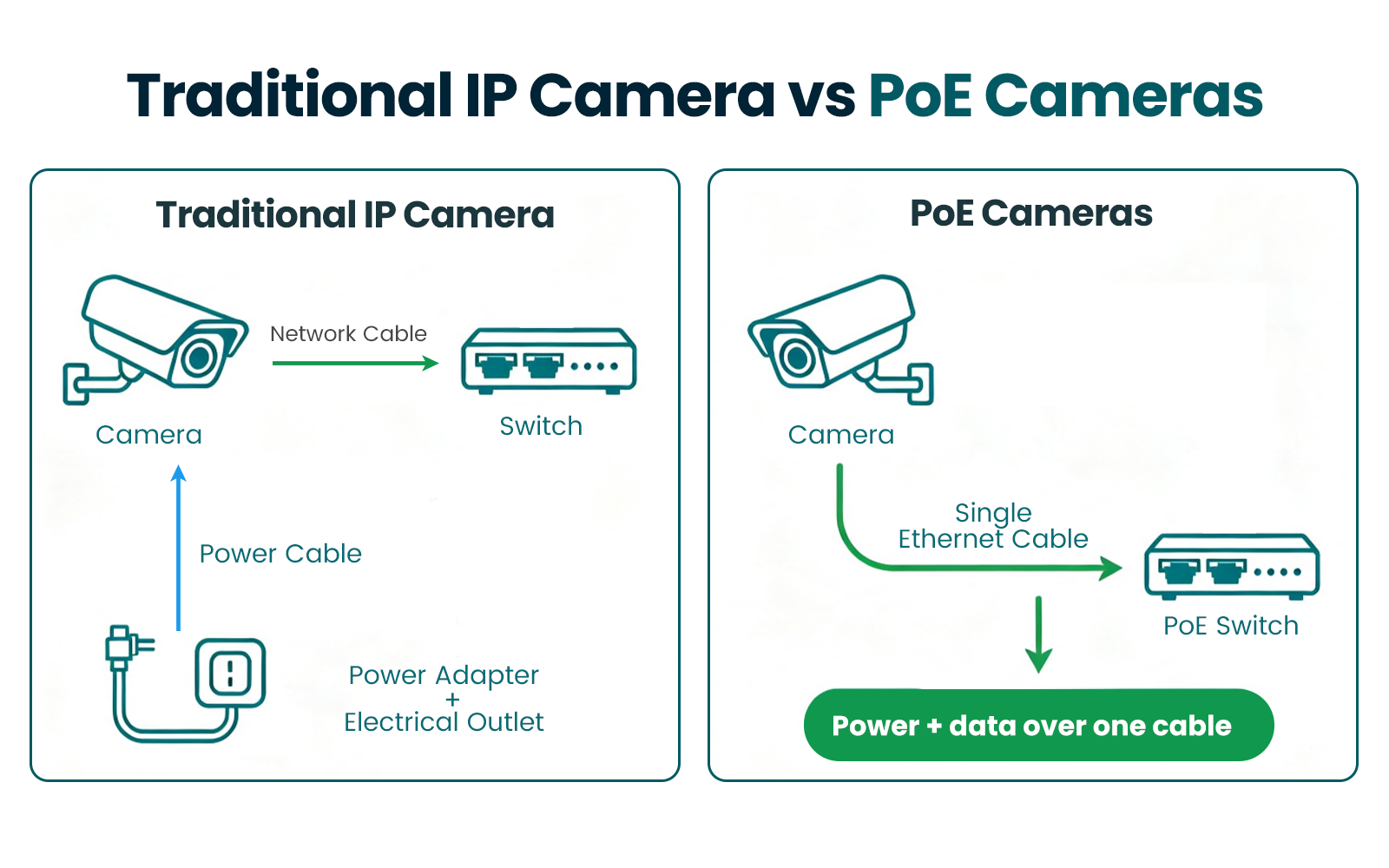

A PoE camera is an IP camera that uses a single Ethernet cable to deliver both power and data.This PoE technology simplifies installation by reducing the need for separate power and network cables.
But how did security cameras evolve into today’s PoE camera solutions? And where does PoE fit among different types of security cameras? Let's take a look at how security cameras have evolved.

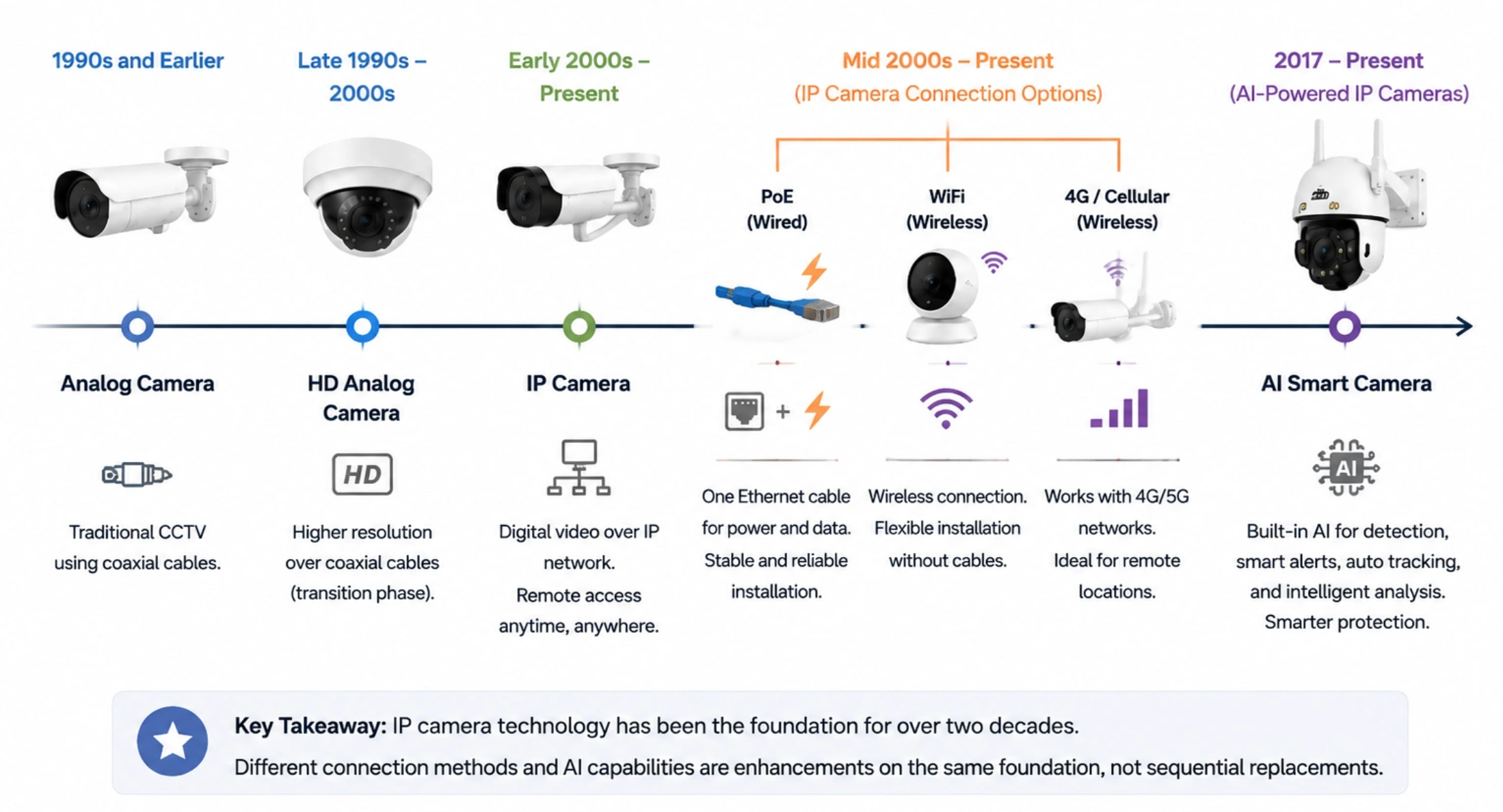

The Evolution of Security Camera
Security cameras have continuously evolved to meet the growing demand for better image quality, easier installation, and smarter monitoring.
From early analog CCTV systems to today's IP-based cameras, each generation introduced new capabilities. Analog cameras improved security monitoring, while IP cameras brought network connectivity and remote access.
Why Are PoE Cameras Becoming More Popular?
| Among different IP camera solutions, PoE cameras have become increasingly popular because they simplify installation, provide reliable connections, and support flexible system expansion.
1. Simplified Installation: PoE cameras use a single Ethernet cable to transmit both power and data, reducing wiring complexity.
2. Reliable Connection: Unlike wireless cameras, PoE cameras provide a more stable connection with less signal interference, making them ideal for professional security systems.
3. Easy System Expansion: PoE systems can be easily expanded by adding more cameras to PoE switches or NVR systems as security needs grow.

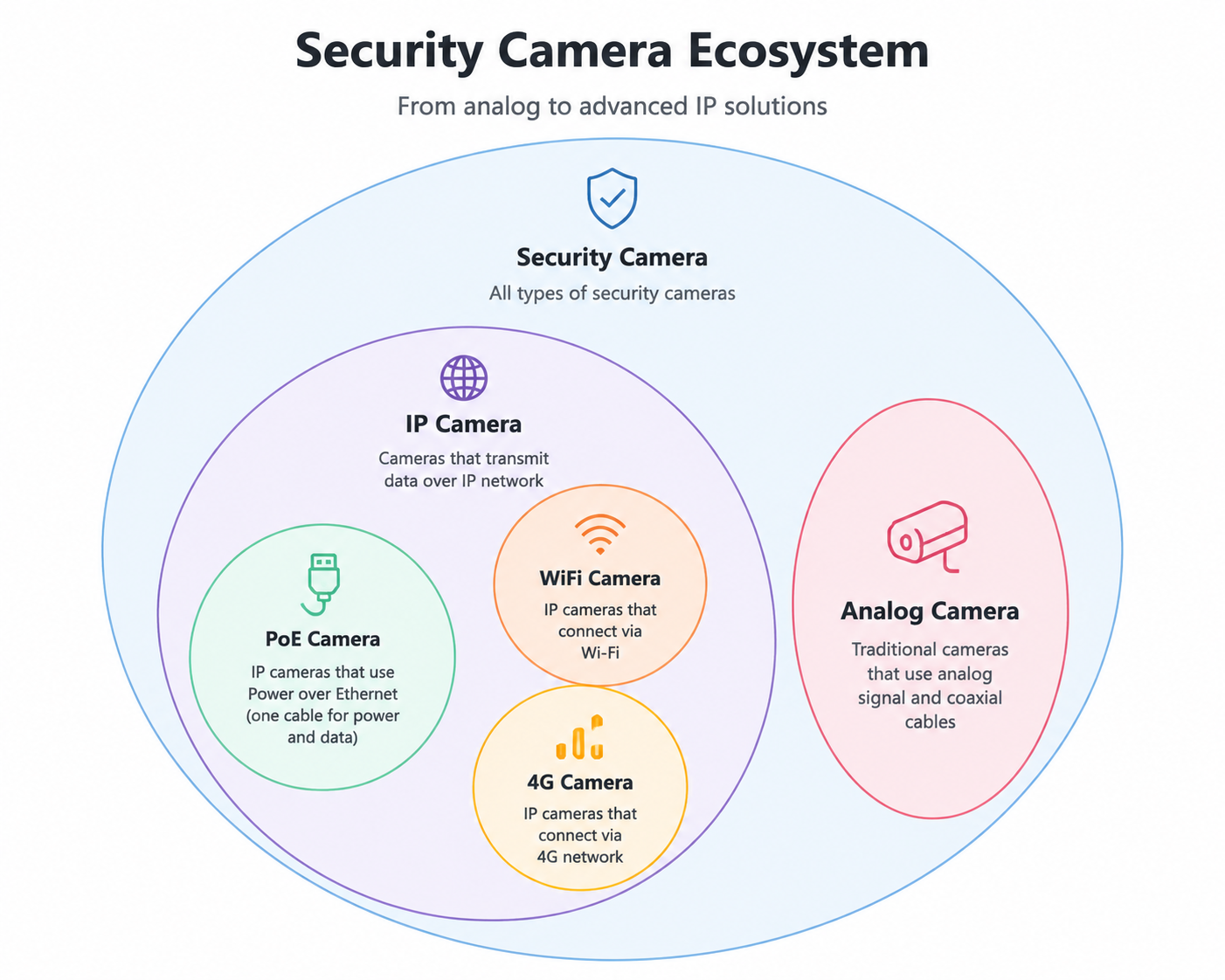

Where Does a PoE Camera Fit Among Different Security Cameras?
| Security cameras can use different connection methods depending on the installation environment. PoE, WiFi, and 4G cameras are all types of IP cameras, but they use different ways to transmit data and are not replacements for each other.

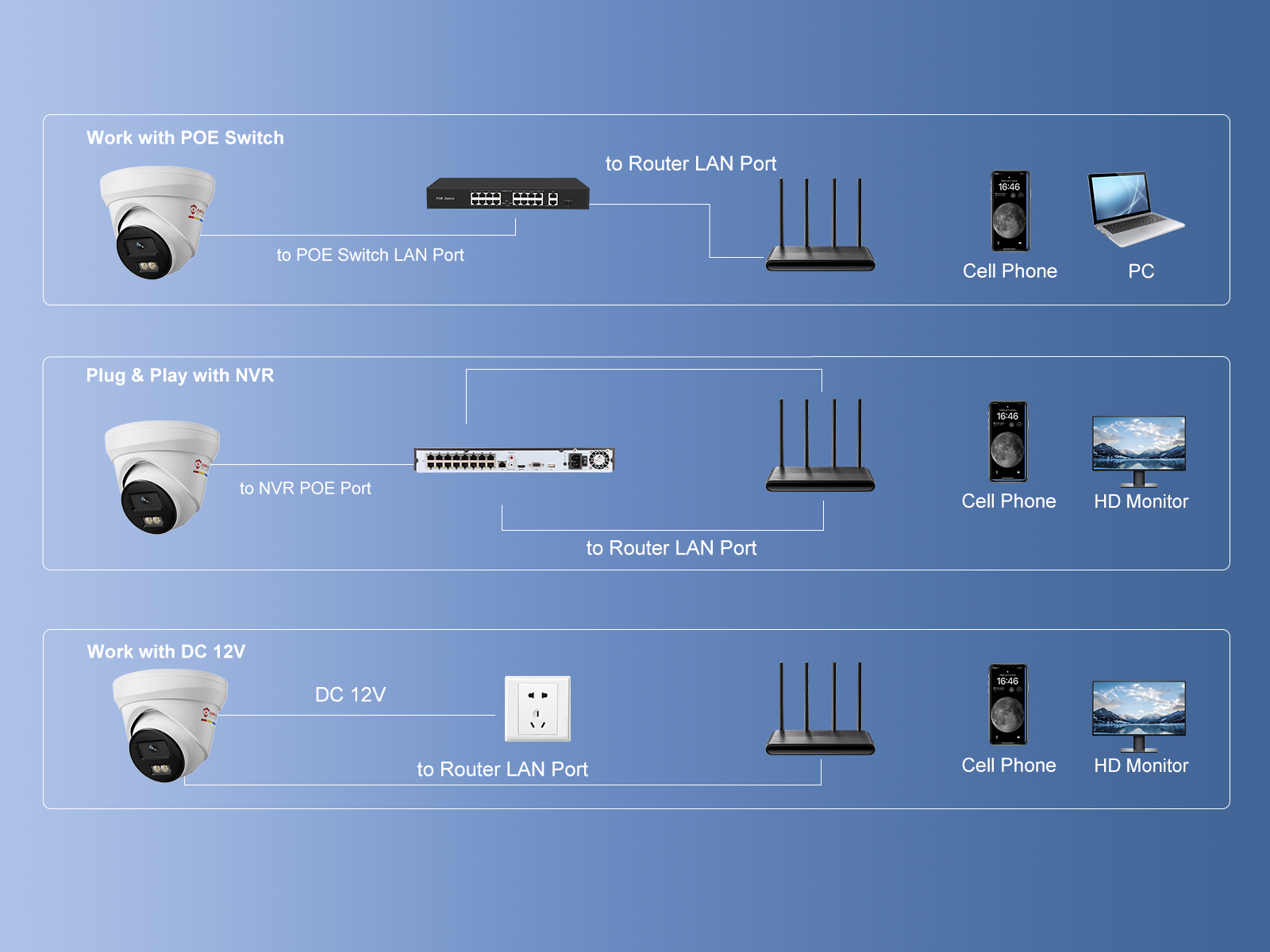

How Does a PoE Camera Work?
| A PoE camera uses Power over Ethernet (PoE) technology to transmit both power and video data through a single Ethernet cable. It can be connected to a PoE switch or PoE NVR, creating a simple and reliable surveillance system.
1. Flexible Expansion with PoE Switch 2. Plug & Play with PoE NVR
When paired with a PoE NVR, PoE cameras can provide a true plug-and-play experience. Simply connect the camera to the NVR’s PoE port using an Ethernet cable, and the NVR can automatically detect the camera, assign an IP address, and display video without complicated network settings.
3. Simple Deployment with PoE Injector
Connection Status
Network Type
Functions
Connection
No Internet
LAN
Live View / Recording / Playback
POE Camera → POE NVR → Monitor
Internet Available
WAN
Live View / Recording / Playback / Remote Viewing
PoE Camera → NVR → Router → Internet → P2P Service → Mobile App / PC
FAQ
Do PoE Cameras Necessarily Need WiFi or Internet?
No. PoE cameras do not need WiFi because they use Ethernet cables for power and data transmission. They can record video and provide local live viewing through a PoE NVR or local network without Internet access. An Internet connection is only required for remote viewing and mobile app access.
What Is the Difference Between PoE and WiFi Cameras?
PoE cameras use wired Ethernet connections to provide power and transmit data, while WiFi cameras rely on wireless networks for communication. PoE cameras are often preferred for permanent installations, while WiFi cameras are suitable for locations where running Ethernet cables is difficult.
How Far Can a PoE Camera Be Installed From the NVR or Switch?
Under normal conditions, a standard Ethernet connection can transmit power and data up to 100 meters (328 feet). For longer distances, PoE extenders or additional network equipment can be used.
Can I Connect My PoE Camera Directly to My Router?
A PoE camera can be connected directly to a router with PoE ports using one Ethernet cable. For routers without PoE support, a PoE switch or injector is required to provide power and transmit data through the same cable.
Conclusion
PoE cameras provide a reliable and efficient security solution by combining power and data transmission through a single Ethernet cable. With easier installation, stable connections, and flexible system expansion, PoE technology has become a popular choice for both residential and professional surveillance systems.
